Spectral Query

Spectral information in a raster layer can be extracted in two ways: individual points Spectral query, or extracted from vector layers.. Note that the bands need to have their wavelength information stored in the Platform product. Data managed by EDA, such as the Bare Earth Composites and public hyperspectral datasets, have this by default. For personal products, ensure that at least the wavelength_nm_center property is defined for all spectral bands. Contact support for assistance with correctly loading data.

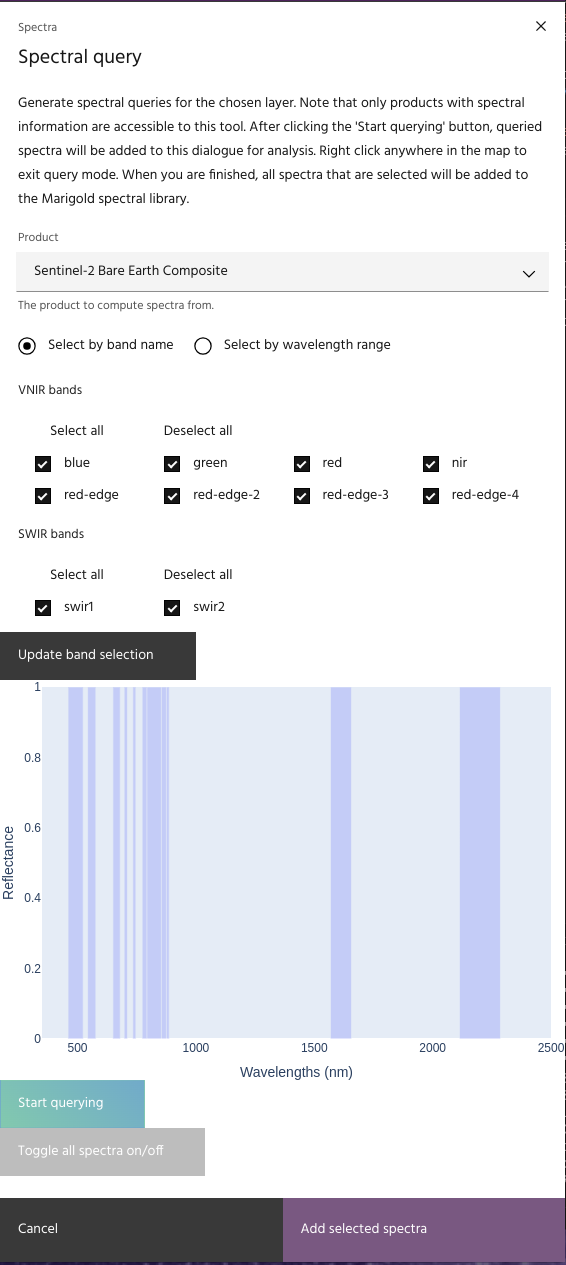

1. From the Spectra header, select Spectral query.


2. Select the layer and bands to query.


3. Click Start querying. The cursor will change to a crosshair to indicate that querying is enabled.

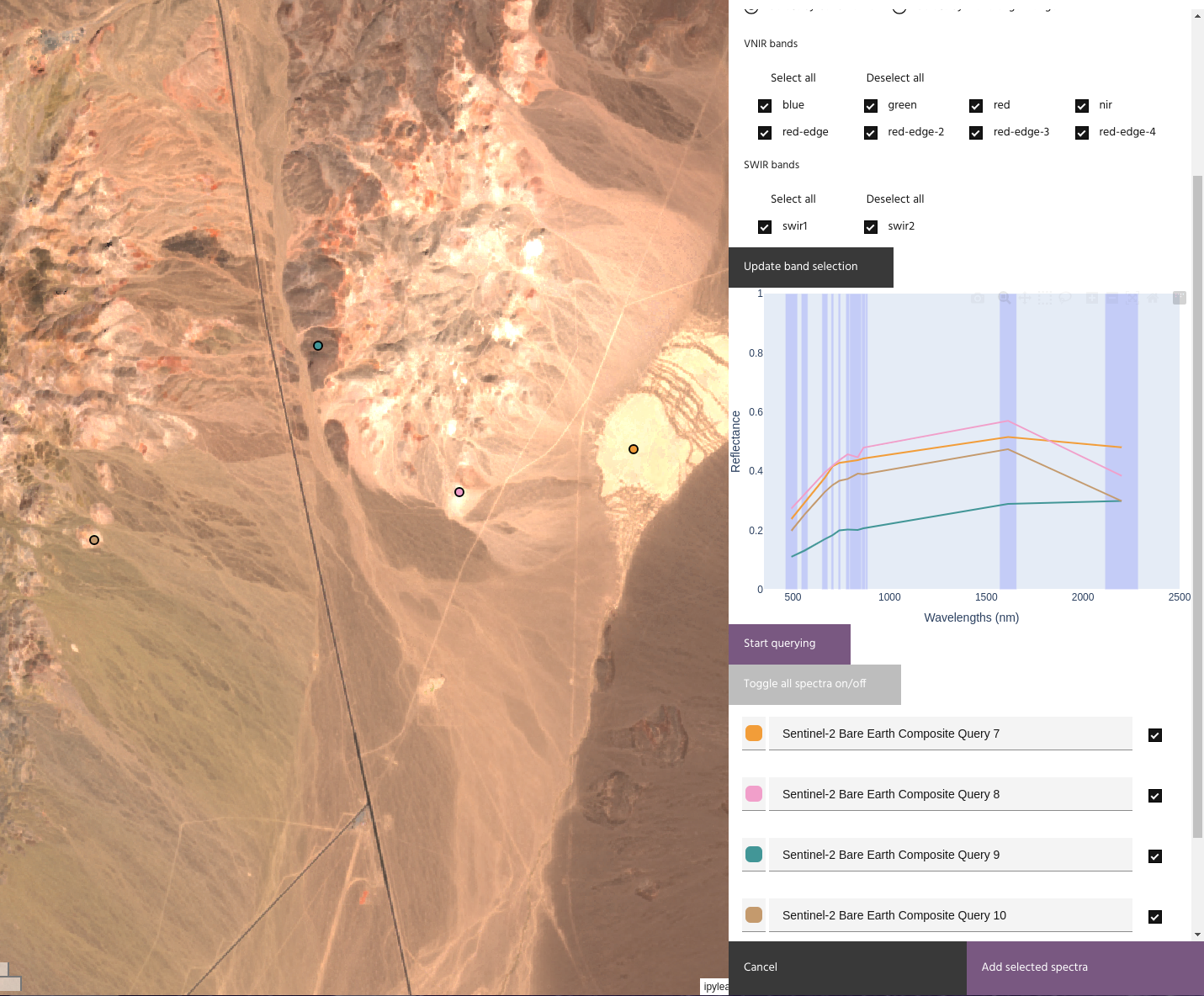

4. Clicking the map will extract the values of the chosen layer at the selected point and add it to the plot. Note that the color of the point on the map will match the color of the spectrum in the plot.

1. Right clicking on the map will exit the querying session, and clicking Start querying again will begin a new one.

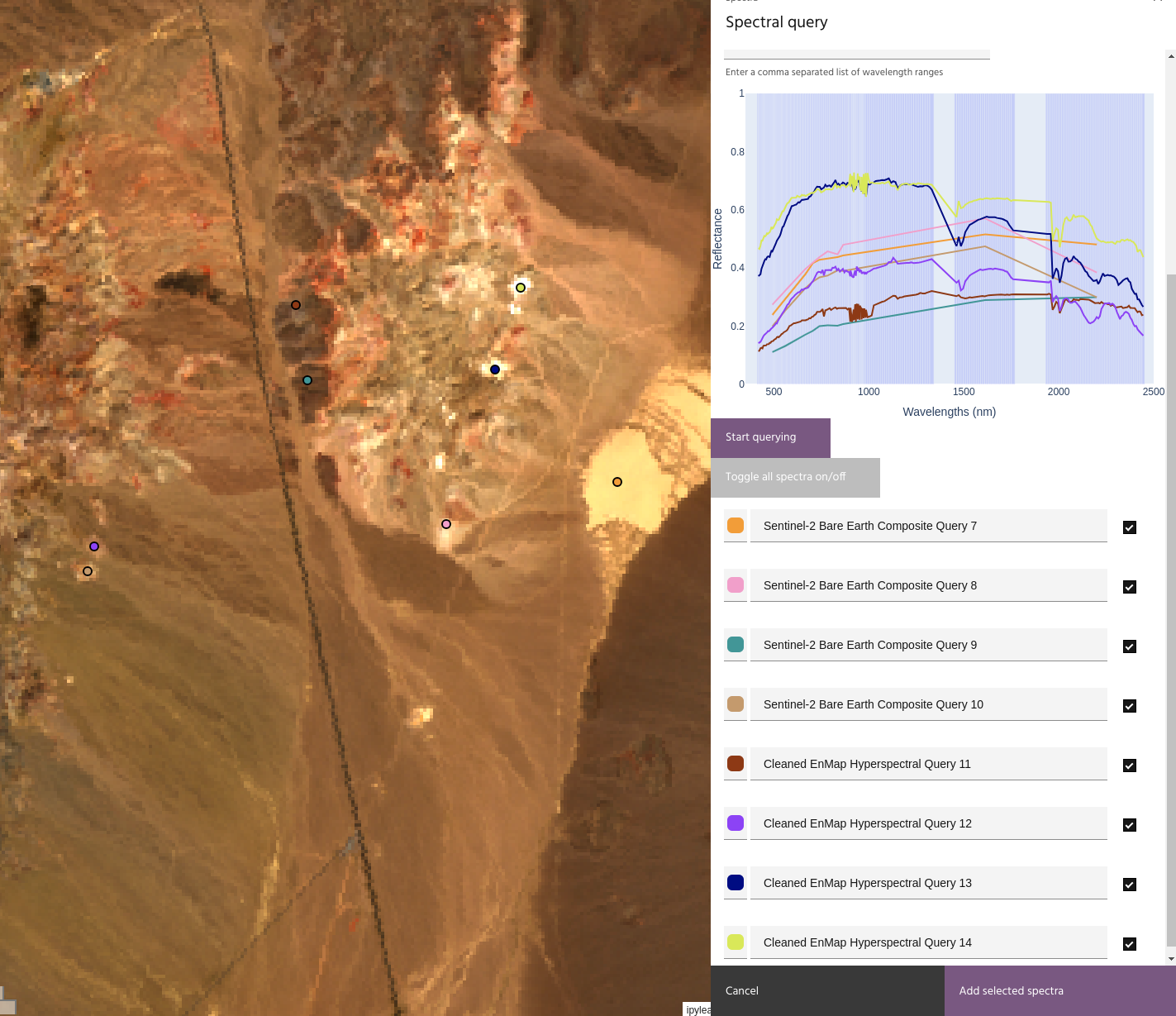

2. Changing the layer or bands in the dialog will change the queried data going forward.

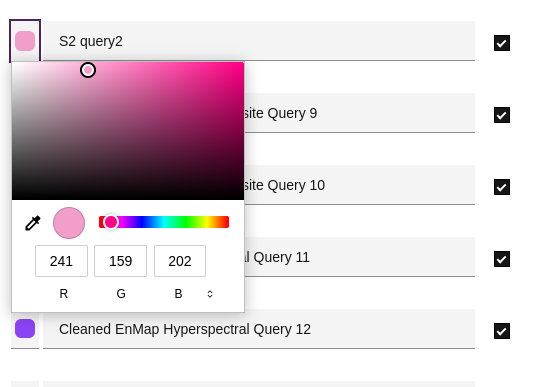

3. Points can be renamed or given a different color.

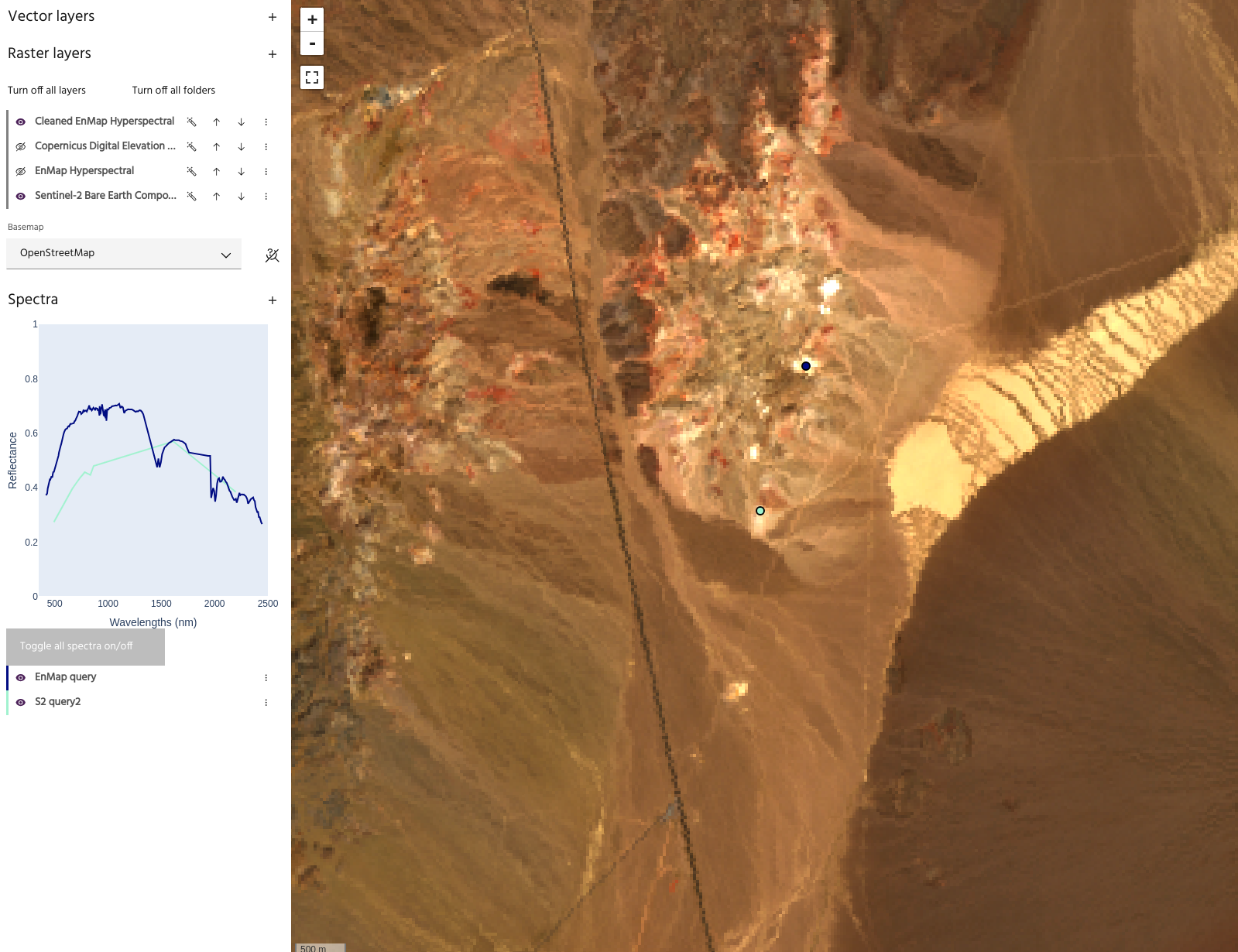

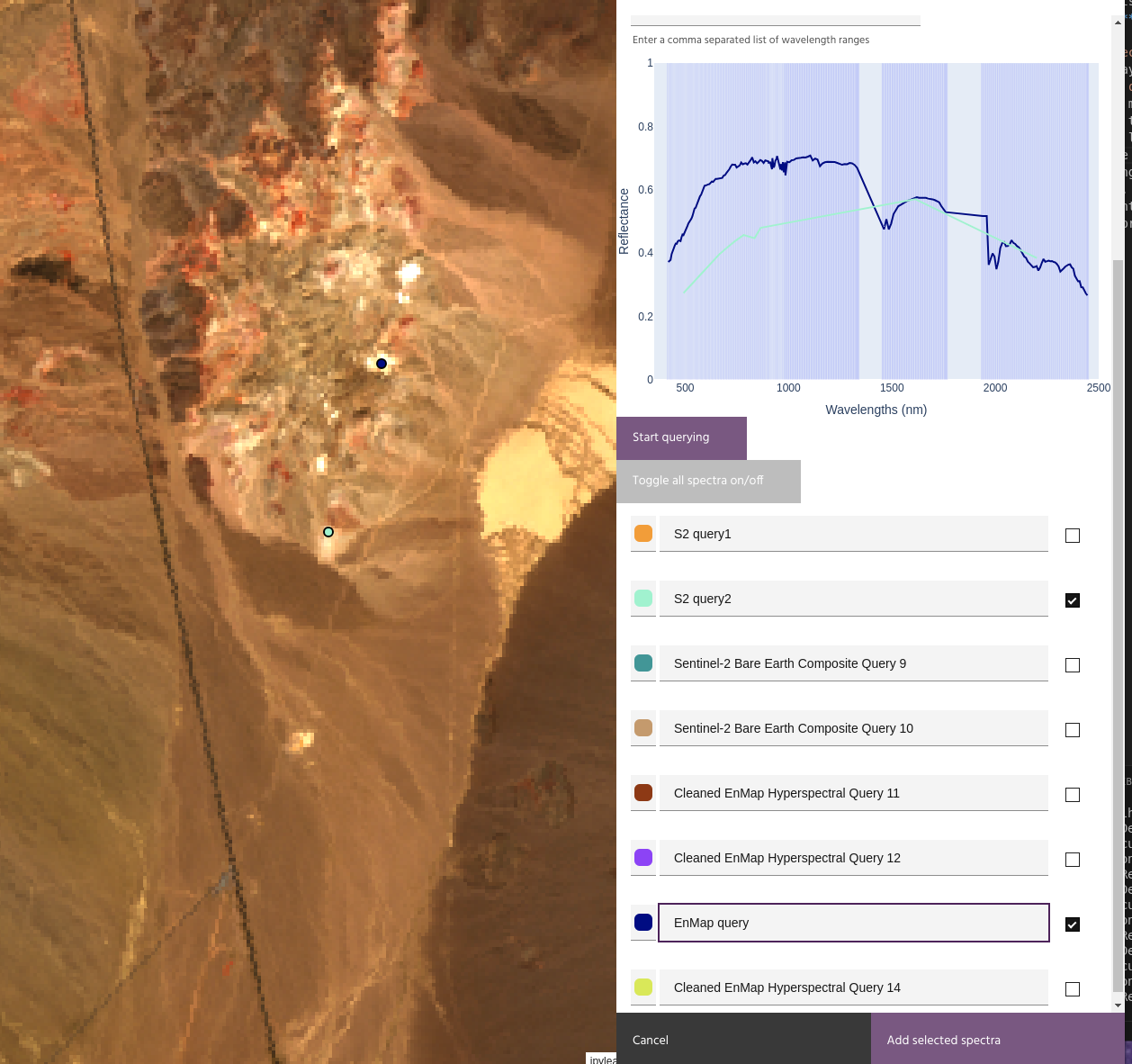

4. When all points have been queried, click Add selected spectra to add all of the currently visible spectra to the project. Unselected spectra will not be added.
